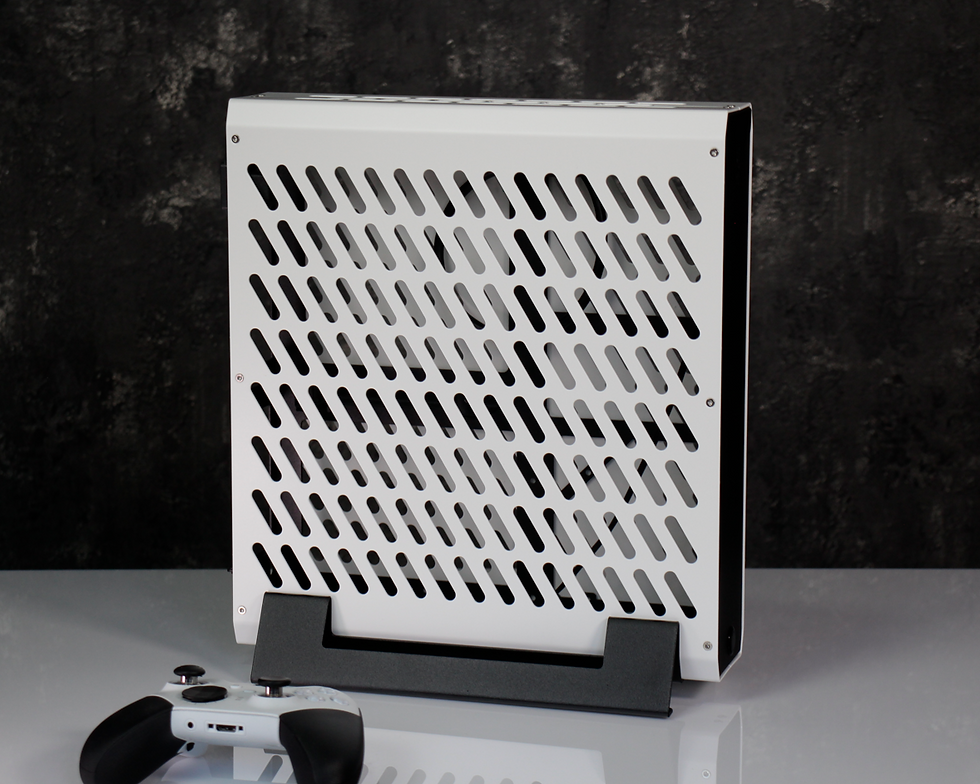

SLM3 8L rev.7 new revision compatible with RTX 5090. Despite the small volume, you can assemble a fairly powerful computer in it. Easy assembly thanks to the simple design of the case. Place the computer vertically or horizontally. You can install a three-slot video card in the case.
SPECIFICATIONS:
Size: 8.07L (345mm x 312mm x 75mm)
Material: Aluminum and steel (1.5mm)
Body weight - 1.6 kg
Connection: 5mm screws, M3 thread
Powder coating: Black or other color according to RAL catalog
COMPATIBILITY:
MB: mini ITX (170 x 170mm)
Cooler: Low profile, up to 48mm high or LCS (liquid cooling system)
PCIe riser: 50-100mm (compatible LINKUP - PCIE 5.0 5cm)
PSU: SFX / SFX-L
Video cards: up to 305mm long, up to 140mm wide, three slots (61mm)
Drives: up to 3 under the video card, 2.5" format
LCS: radiator up to 120mm, takes the place of a video card. VIDEO CARD COMPATIBILITY GUIDE
Maximum graphics card: Length no more than – 305 mm, three slots (62 mm)
Mini video card + radiator 92: Length no more than – 200 mm, three slots (62mm), or two slots + 2x 2.5" SSD *instead of a radiator, a 3.5" drive can be installed
Mini video card + 120 radiator: Length no more than – 182 mm, 2.5 slots + 2x 2.5" SSD
Height: with SFX format PSU – 140 mm with SFX-L format power supply – 130 mm
DRIVE COMPATIBILITY GUIDE
1x 3.5" format mounts in place for 120mm radiators Limitations: compatible video cards no longer than 210mm long
3x 2.5" format under the video card Limitation: two video card slots (up to 50mm)
1x 2.5" format above the motherboard Limitation: coolers no more than 40mm high
COMPLETE SET:
On/Off button: 16mm
Mounting screw set
Internal Network cable for powering the PSU
Stand for vertical installation
