SL1 2.1L

SL1 2.1L rev.3 is our smallest case!  It was designed for office and multimedia applications.

​

The simple design of the case makes it convenient to assemble a PC in it and maintain it. The case can be hung behind the monitor or on the wall using the VESA mount.



  • The case is made of durable carbon steel 1mm thick


  • For builds without a graphics card, use a CPU with integrated graphics

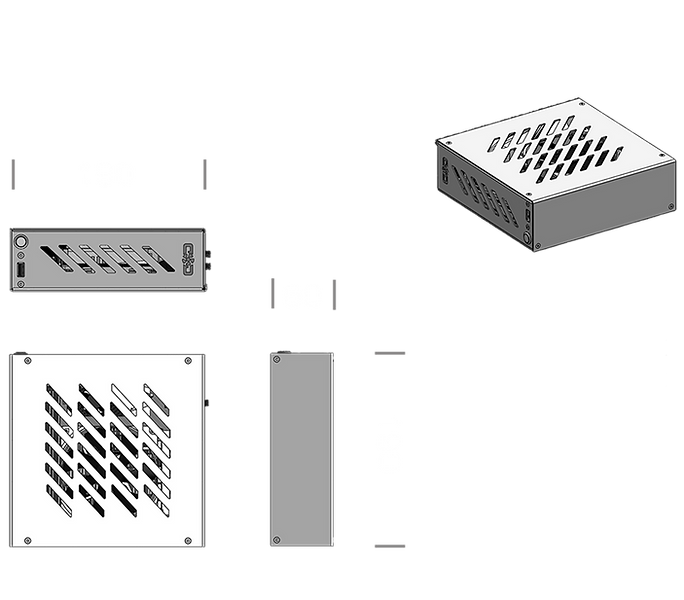

  • Size: 190 x 190 x 60mm


  • We paint with powder paint in different colors


  • In the new revision, the side covers are removable


  • Installed special nuts with a thread of more than 3mm


  • The power button is now on the sidebar on the front


  • Modification with a USB connector near the power button is possible

​


  • ​Case supports installation of mini-ITX motherboards (170x170mm)


  • Use low-profile CPU coolers that are no more than 43mm high.


  • One 2.5" drive can be installed
    *The thickness of the drive reduces the allowable height of the CPU cooler.


  • Permissible height of RAM slats no more than 48mm


  • To power your computer, connect the pico-PSU with an external power supply.



Recommended for assembly, in a case

SL1 2.1L​ following configuration.

​

  • CPU:      RYZEN 5 max TDP 65W


  • Cooler: Scythe Kodati BSCKDT-1100
                   JONSBO HP-400
                   NOCTUA NH-L9a


  • pico:      HDPLEX 200W

  • PSU:      180-240W 19.5V

​
